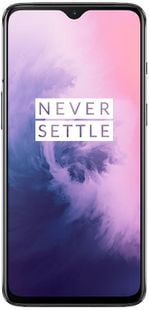

OnePlus 7
- Screen: 6.41" Super AMOLED - 1080 x 2340
- SoC: Qualcomm Snapdragon 855
- Camera: 2 (48 MP + 5 MP)
- Battery: 3700 mAh
- OS: Android 12
- Weight: 182 grams (6.42 oz)
Review
Full specifications
Detailed specifications, tests, and benchmarks of the OnePlus 7Display
| Type | Super AMOLED |
| Size | 6.41 inches |
| Resolution | 1080 x 2340 pixels |
| Aspect ratio | 19.5:9 |
| PPI | 402 ppi |
| Refresh rate | 60 Hz |
| Adaptive refresh rate | No |
| Max rated brightness | 800 nits |
| HDR support | Yes, HDR10 |
| Screen protection | Corning Gorilla Glass 6 |
| Screen-to-body ratio | 85.5% |
| Display features |
- DCI-P3
- Always-On Display - DC Dimming |
| RGB color space | 99.7% |
| PWM | 200 Hz |
| Response time | 7 ms |
| Contrast | ∞ Infinity |
Design and build
| Height | 157.7 mm (6.21 inches) |
| Width | 74.8 mm (2.94 inches) |
| Thickness | 8.2 mm (0.32 inches) |
| Weight | 182 g (6.42 oz) |
| Waterproof | No |
| Rear material | Glass |
| Frame material | Metal |
| Colors | Gray, Red |
| Fingerprint scanner | Yes, in-display |
Performance
| Chipset | Qualcomm Snapdragon 855 |
| Max clock | 2840 MHz |
| CPU cores | 8 (1 + 3 + 4) |
| Architecture |
- 4 cores at 1.8 GHz: Cortex-A55 (Kryo 485 Silver)
- 3 cores at 2.42 GHz: Cortex-A76 (Kryo 485 Gold) - 1 core at 2.84 GHz: Cortex-A76 (Kryo 485 Gold) |
| L3 cache | 2 MB |
| Lithography process | 7 nanometers |
| Graphics | Adreno 640 |
| GPU shading units | 768 |
| GPU clock | 585 MHz |
| FLOPS | ~898.5 GFLOPS |
Benchmarks
| CPU | 179654 |
| GPU | 171108 |
| Memory | 115065 |
| UX | 141578 |
| Total score | 602086 |
| Max surface temperature | 49 °C |
| Stability | 98% |
| Graphics test | 18 FPS |
| Graphics score | 3086 |
| Web score | 6771 |
| Video editing | 6208 |
| Photo editing | 22202 |
| Data manipulation | 7767 |
| Writing score | 12057 |
Memory
| RAM size | 6, 8 GB |
| Memory type | LPDDR4X |
| Memory clock | 2133 MHz |
| Channels | 2 |
| Storage size | 128, 256 GB |
| Storage type | UFS 3.0 |
| Memory card | No |
Software
| Operating system | Android 9.0 (Can be upgraded to Android 12) |
| ROM | OxygenOS 12.1 |
| OS size | 16 GB |
Battery
| Capacity | 3700 mAh |
| Max charge power | 20 W |
| Battery type | Li-Po |
| Replaceable | No |
| Wireless charging | No |
| Reverse charging | No |
| Fast charging | Yes, Warp Charge (48% in 30 min) |
| Full charging time | 1:25 hr |
| Web browsing | 10:24 hr |
| Watching video | 14:54 hr |
| Gaming | 04:13 hr |
| Standby | 96 hr |
Camera
| Matrix | 48 megapixels |
| Image resolution | 8000 x 6000 |
| Zoom | Optical |
| Stabilization | Optical |
| 8K video recording | No |
| 4K video recording | Up to 60FPS |
| 1080p video recording | Up to 240FPS |
| Slow motion | 480 FPS (720p) |
| Lenses | 2 (48 MP + 5 MP) |
| Wide (main) lens |
- 48 MP
- Aperture: f/1.7 - Pixel size: 0.8 micron - Sensor: 1/2", Sony IMX586 (Exmor-RS CMOS) - Phase autofocus - Optical stabilization |
| Depth lens |
- 5 MP
- Aperture: f/2.4 - Pixel size: 1.12 micron - Sensor: 1/5", GalaxyCore GC5035 (CMOS) |
| Camera features |
- Bokeh mode
- Pro mode - RAW support |
| Megapixels | 16 megapixels |
| Image resolution | 4608 x 3456 |
| Aperture | f/2.0 |
| Focal length | 25 mm |
| Pixel size | 1 microns |
| Sensor type | CMOS |
| Sensor size | 1/3.1" |
| Video resolution | 1080p (Full HD) at 30 FPS |
Connectivity
| Wi-Fi standard | Wi-Fi 5 (802.11 a/b/g/n/ac) |
| Wi-Fi features |
- Dual Band
- Wi-Fi Direct - Wi-Fi Hotspot |
| Bluetooth version | 5 |
| Bluetooth features | LE, A2DP |
| USB type | USB Type-C |
| USB version | 3.1 |
| USB features |
- Charging
- USB-Storage mode - OTG |
| GPS | GPS, GLONASS, Beidou, Galileo |
| NFC * | Yes |
| Infrared port | No |
| Number of SIM * | 2 |
| Type of SIM card | Nano |
| Multi SIM mode | Standby |
| eSIM support * | No |
| Hybrid slot | No |
| LTE Cat * | 16 |
| 2G network | GSM 900/1800/1900 |
| 3G network | 850 МГц, 900 МГц, 1700/2100 МГц, 1900 МГц, 2100 МГц |
| 4G network | 700 МГц, 800 МГц, 850 МГц, 900 МГц, 1700/2100 МГц, 1900 МГц, 2100 МГц, 2500 МГц |
| 5G support | No |
Sound
| Speakers | Stereo |
| Headphone audio jack | No |
| FM radio | No |
| Dolby Atmos | Yes |
Speakers test
Other
| Category | Flagship |
| Announced | May 2019 |
| Release date | June 2019 |
| SAR (head) | 1.166 W/kg |
| SAR (body) | 1.382 W/kg |
| Sensors |
- Proximity sensor
- Gyroscope - Accelerometer - Ambient light sensor - Compass - Fingerprint |
*
Disclaimer!
Some specifications of the OnePlus 7 may differ by country or region
