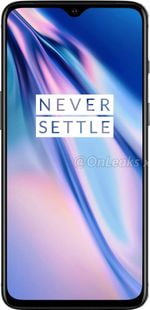

OnePlus 7T
- Screen: 6.55" AMOLED - 1080 x 2400
- SoC: Qualcomm Snapdragon 855 Plus
- Camera: 3 (48 MP + 12 MP + 16 MP)
- Battery: 3800 mAh
- OS: Android 12
- Weight: 190 grams (6.7 oz)
Review
Full specifications
Detailed specifications, tests, and benchmarks of the OnePlus 7TDisplay
| Type | AMOLED |
| Size | 6.55 inches |
| Resolution | 1080 x 2400 pixels |
| Aspect ratio | 20:9 |
| PPI | 402 ppi |
| Refresh rate | 90 Hz |
| Adaptive refresh rate | No |
| Max rated brightness | 1000 nits |
| HDR support | Yes, HDR10+ |
| Screen protection | Corning Gorilla Glass 5 |
| Screen-to-body ratio | 86.74% |
| Display features |
- DCI-P3
- Always-On Display - DC Dimming |
| RGB color space | 99.6% |
| PWM | 357 Hz |
| Response time | 6 ms |
| Contrast | ∞ Infinity |
Design and build
| Height | 160.9 mm (6.33 inches) |
| Width | 74.5 mm (2.93 inches) |
| Thickness | 8.1 mm (0.32 inches) |
| Weight | 190 g (6.7 oz) |
| Waterproof | IPX4 |
| Rear material | Glass |
| Frame material | Metal |
| Colors | Silver, Blue |
| Fingerprint scanner | Yes, in-display |
Performance
| Chipset | Qualcomm Snapdragon 855 Plus |
| Max clock | 2960 MHz |
| CPU cores | 8 (1 + 3 + 4) |
| Architecture |
- 4 cores at 1.8 GHz: Cortex-A55 (Kryo 485 Silver)
- 3 cores at 2.42 GHz: Cortex-A76 (Kryo 485 Gold) - 1 core at 2.96 GHz: Cortex-A76 (Kryo 485 Gold) |
| L3 cache | 2 MB |
| Lithography process | 7 nanometers |
| Graphics | Adreno 640 |
| GPU shading units | 768 |
| GPU clock | 627 MHz |
| FLOPS | ~1036.8 GFLOPS |
Benchmarks
| CPU | 181414 |
| GPU | 178991 |
| Memory | 117078 |
| UX | 142747 |
| Total score | 618424 |
| Max surface temperature | 50.7 °C |
| Stability | 97% |
| Graphics test | 14 FPS |
| Graphics score | 2401 |
Memory
| RAM size | 8 GB |
| Memory type | LPDDR4X |
| Memory clock | 2133 MHz |
| Channels | 2 |
| Storage size | 128, 256 GB |
| Storage type | UFS 3.0 |
| Memory card | No |
Software
| Operating system | Android 10.0 (Can be upgraded to Android 12) |
| ROM | OxygenOS 12.1 |
| OS size | 27 GB |
Battery
| Capacity | 3800 mAh |
| Max charge power | 30 W |
| Battery type | Li-Po |
| Replaceable | No |
| Wireless charging | No |
| Reverse charging | No |
| Fast charging | Yes, Warp Charge 3T (35% in 15 min) |
| Full charging time | 1:00 hr |
| Web browsing | 10:51 hr |
| Watching video | 14:15 hr |
| Gaming | 04:53 hr |
| Standby | 103 hr |
Camera
| Matrix | 48 megapixels |
| Image resolution | 8000 x 6000 |
| Zoom | Optical, 2x |
| Flash | Dual LED |
| Stabilization | Optical |
| 8K video recording | No |
| 4K video recording | Up to 60FPS |
| 1080p video recording | Up to 60FPS |
| Slow motion | 960 FPS (720p) |
| Angle of widest lens | 117° |
| Lenses | 3 (48 MP + 12 MP + 16 MP) |
| Wide (main) lens |
- 48 MP
- Aperture: f/1.6 - Focal length: 26 mm - Pixel size: 0.8 micron - Sensor: 1/2", Sony IMX586 (Exmor-RS CMOS) - Phase autofocus - Optical stabilization |
| Telephoto lens |
- 12 MP
- Aperture: f/2.2 - Focal length: 51 mm - Pixel size: 1 micron - Sensor: 1/3.4", Samsung S5K3M5 (ISOCELL CMOS) - Phase autofocus |
| Ultra-wide lens |
- 16 MP
- Aperture: f/2.2 - Focal length: 17 mm - Sensor: 1/3.09", Sony IMX481 (BSI CMOS) |
| Camera features |
- Bokeh mode
- Pro mode - RAW support |
| Megapixels | 16 megapixels |
| Image resolution | 4608 x 3456 |
| Aperture | f/2.0 |
| Focal length | 25 mm |
| Pixel size | 1 microns |
| Sensor type | CMOS |
| Sensor size | 1/3.1" |
| Video resolution | 1080p (Full HD) at 30 FPS |
DxOMark camera tests
Connectivity
| Wi-Fi standard | Wi-Fi 5 (802.11 b/g/n/ac) |
| Wi-Fi features |
- Dual Band
- Wi-Fi Direct - Wi-Fi Hotspot |
| Bluetooth version | 5 |
| Bluetooth features | LE, A2DP |
| USB type | USB Type-C |
| USB version | 3.1 |
| USB features |
- Charging
- USB-Storage mode - OTG |
| GPS | GPS, GLONASS, Beidou, Galileo |
| NFC * | Yes |
| Infrared port | No |
| Number of SIM * | 2 |
| Type of SIM card | Nano |
| Multi SIM mode | Standby |
| eSIM support * | No |
| Hybrid slot | No |
| LTE Cat * | 16 |
| 2G network | GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 |
| 3G network | HSDPA 800 / 850 / 900 / 1700(AWS) / 1800 / 1900 / 2100 |
| 4G network | LTE band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 12(700), 13(700), 17(700), 18(800), 19(800), 20(800), 25(1900), 26(850), 28(700), 29(700), 32(1500), 34(2000), 38(2600), 39(1900), 40(2300), 41(2500), 66(1700/2100) |
| 5G support | No |
Sound
| Speakers | Stereo |
| Headphone audio jack | No |
| FM radio | No |
| Dolby Atmos | Yes |
Speakers test
Other
| Category | Flagship |
| Announced | September 2019 |
| Release date | September 2019 |
| SAR (head) | 1.04 W/kg |
| SAR (body) | 1.4 W/kg |
| Sensors |
- Proximity sensor
- Gyroscope - Accelerometer - Ambient light sensor - Compass - Fingerprint |
*
Disclaimer!
Some specifications of the OnePlus 7T may differ by country or region
