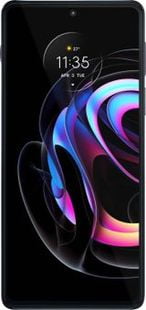

Motorola Edge 20 Pro
- Screen: 6.7" OLED - 1080 x 2400
- SoC: Qualcomm Snapdragon 870
- Camera: 3 (108 MP + 8 MP + 16 MP)
- Battery: 4500 mAh
- OS: Android 11
- Weight: 190 grams (6.7 oz)
Review
Full specifications
Detailed specifications, tests, and benchmarks of the Motorola Edge 20 ProDisplay
| Type | OLED |
| Size | 6.7 inches |
| Resolution | 1080 x 2400 pixels |
| Aspect ratio | 19.5:9 |
| PPI | 385 ppi |
| Refresh rate | 144 Hz |
| Adaptive refresh rate | No |
| Max rated brightness | 450 nits |
| Max rated brightness in HDR | 700 nits |
| HDR support | Yes, HDR10+ |
| Screen protection | Corning Gorilla Glass 5 |
| Screen-to-body ratio | 89% |
| Display features | - DCI-P3 |
| RGB color space | 150.8% |
| PWM | 471 Hz |
| Response time | 15 ms |
| Contrast | ∞ Infinity |
Design and build
| Height | 163 mm (6.42 inches) |
| Width | 76 mm (2.99 inches) |
| Thickness | 7.99 mm (0.31 inches) |
| Weight | 190 g (6.7 oz) |
| Waterproof | IP52 |
| Rear material | Plastic |
| Frame material | Metal |
| Colors | Blue |
| Fingerprint scanner | Yes, in-button |
Performance
| Chipset | Qualcomm Snapdragon 870 |
| Max clock | 3200 MHz |
| CPU cores | 8 (1 + 3 + 4) |
| Architecture |
- 4 cores at 1.8 GHz: Kryo 585 Silver (Cortex-A55)
- 3 cores at 2.42 GHz: Kryo 585 Gold (Cortex-A77) - 1 core at 3.2 GHz: Kryo 585 Prime (Cortex-A77) |
| L3 cache | 4 MB |
| Lithography process | 7 nanometers |
| Graphics | Adreno 650 |
| GPU shading units | 1024 |
| GPU clock | 670 MHz |
| FLOPS | ~1372.1 GFLOPS |
Benchmarks
| CPU | 242292 |
| GPU | 217657 |
| Memory | 156024 |
| UX | 211143 |
| Total score | 822910 |
| Max surface temperature | 43.5 °C |
| Stability | 99% |
| Graphics test | 25 FPS |
| Graphics score | 4215 |
| Web score | 11360 |
| Video editing | 7869 |
| Photo editing | 41357 |
| Data manipulation | 11224 |
| Writing score | 18037 |
Memory
| RAM size | 6, 8, 12 GB |
| Memory type | LPDDR4X |
| Memory clock | 2133 MHz |
| Channels | 2 |
| Storage size | 128, 256, 512 GB |
| Storage type | UFS 3.1 |
| Memory card | No |
Software
| Operating system | Android 11 |
| ROM | Stock Android |
| OS size | 33 GB |
Battery
| Capacity | 4500 mAh |
| Max charge power | 30 W |
| Battery type | Li-Po |
| Replaceable | No |
| Wireless charging | No |
| Reverse charging | No |
| Fast charging | Yes (53% in 30 min) |
| Full charging time | 1:17 hr |
| Web browsing | 09:13 hr |
| Watching video | 18:31 hr |
| Gaming | 03:43 hr |
| Standby | 112 hr |
Camera
| Matrix | 108 megapixels |
| Image resolution | 12032 x 9204 |
| Zoom | Optical, 5x |
| Flash | Dual LED |
| Stabilization | Digital |
| 8K video recording | Up to 24FPS |
| 4K video recording | Up to 60FPS |
| 1080p video recording | Up to 60FPS |
| Slow motion | 120 FPS (1080p) |
| Angle of widest lens | 119° |
| Lenses | 3 (108 MP + 8 MP + 16 MP) |
| Wide (main) lens |
- 108 MP
- Aperture: f/1.9 - Focal length: 26 mm - Pixel size: 0.7 micron - Sensor: 1/1.52", Samsung S5KHM2 (ISOCELL Plus CMOS) - Phase autofocus |
| Telephoto lens |
- 8 MP
- Aperture: f/3.4 - Focal length: 126 mm - Pixel size: 1 micron - Phase autofocus - Optical stabilization |
| Ultra-wide lens |
- 16 MP
- Aperture: f/2.2 - Focal length: 13 mm - Pixel size: 1 micron |
| Camera features |
- Bokeh mode
- Pro mode |
| Samples | Photo samples of Motorola Edge 20 Pro from DxOMark |
| Megapixels | 32 megapixels |
| Image resolution | 6528 x 4896 |
| Aperture | f/2.3 |
| Pixel size | 0.7 microns |
| Sensor type | CMOS |
| Video resolution | 2160p (4K) at 30 FPS |
DxOMark camera tests
Connectivity
| Wi-Fi standard | Wi-Fi 6 (802.11 a/b/g/n/ac/ax) |
| Wi-Fi features |
- Dual Band
- Wi-Fi Direct - Wi-Fi Hotspot - Wi-Fi Display |
| Bluetooth version | 5.1 |
| Bluetooth features | LE, A2DP |
| USB type | USB Type-C |
| USB version | 3.1 |
| USB features |
- Charging
- USB-Storage mode - OTG |
| GPS | GPS, GLONASS, Beidou, Galileo, QZSS, NAVIC, SBAS |
| NFC * | Yes |
| Infrared port | No |
| Number of SIM * | 2 |
| Type of SIM card | Nano |
| Multi SIM mode | Standby |
| eSIM support * | No |
| Hybrid slot | Yes |
| LTE Cat * | 18 |
| 5G support | Yes |
Sound
| Speakers | Mono |
| Headphone audio jack | No |
| FM radio | No |
| Dolby Atmos | No |
Speakers test
Other
| Category | Flagship |
| Announced | July 2021 |
| Release date | August 2021 |
| Sensors |
- Proximity sensor
- Gyroscope - Accelerometer - Ambient light sensor - Compass - Fingerprint |
| Bundled charger | Yes, 30 W |
*
Disclaimer!
Some specifications of the Edge 20 Pro may differ by country or region
