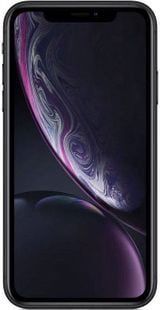

Apple iPhone XR
- Screen: 6.1" IPS LCD - 828 x 1792
- SoC: Apple A12 Bionic
- Camera: 1 (12 MP)
- Battery: 2942 mAh
- OS: iOS 17
- Weight: 194 grams (6.84 oz)
Review
Full specifications
Detailed specifications, tests, and benchmarks of the Apple iPhone XRDisplay
| Type | IPS LCD |
| Size | 6.1 inches |
| Resolution | 828 x 1792 pixels |
| Aspect ratio | 19.5:9 |
| PPI | 326 ppi |
| Refresh rate | 60 Hz |
| Adaptive refresh rate | No |
| Max rated brightness | 625 nits |
| HDR support | Yes, Dolby Vision |
| Screen protection | Tempered glass |
| Screen-to-body ratio | 79% |
| RGB color space | 100% |
| PWM | Not detected |
| Response time | 32.8 ms |
| Contrast | 1920:1 |
Design and build
| Height | 150.9 mm (5.94 inches) |
| Width | 75.7 mm (2.98 inches) |
| Thickness | 8.3 mm (0.33 inches) |
| Weight | 194 g (6.84 oz) |
| Waterproof | IP67 |
| Rear material | Glass |
| Frame material | Metal |
| Colors | White, Black, Blue, Red, Orange, Yellow |
| Fingerprint scanner | No |
Performance
| Chipset | Apple A12 Bionic |
| Max clock | 2490 MHz |
| CPU cores | 6 (2 + 4) |
| Architecture |
- 4 cores at 1.6 GHz: Tempest
- 2 cores at 2.49 GHz: Vortex |
| Lithography process | 7 nanometers |
| Graphics | Apple A12 GPU |
| GPU shading units | 256 |
| GPU clock | 1100 MHz |
| FLOPS | ~576 GFLOPS |
Benchmarks
| CPU | 180501 |
| GPU | 203202 |
| Memory | 123963 |
| UX | 132209 |
| Total score | 635968 |
| Max surface temperature | 42.6 °C |
| Stability | 69% |
| Graphics test | 31 FPS |
| Graphics score | 5205 |
Memory
| RAM size | 3 GB |
| Memory type | LPDDR4X |
| Memory clock | 2133 MHz |
| Channels | 2 |
| Storage size | 64, 128, 256 GB |
| Storage type | NVMe |
| Memory card | No |
Software
| Operating system | iOS 12 (Can be upgraded to iOS 17) |
| OS size | 11.1 GB |
Battery
| Capacity | 2942 mAh |
| Max charge power | 15 W |
| Battery type | Li-Ion |
| Replaceable | No |
| Wireless charging | Yes, Qi (10 W) |
| Reverse charging | No |
| Fast charging | Yes (50% in 30 min) |
| Full charging time | 1:43 hr |
| Web browsing | 11:16 hr |
| Watching video | 12:45 hr |
| Gaming | 05:07 hr |
| Standby | 123 hr |
Camera
| Matrix | 12 megapixels |
| Image resolution | 4032 x 3024 |
| Zoom | Digital |
| Flash | Quad LED |
| Stabilization | Optical |
| 8K video recording | No |
| 4K video recording | Up to 60FPS |
| 1080p video recording | Up to 60FPS |
| Slow motion | 240 FPS (1080p) |
| Lenses | 1 (12 MP) |
| Wide (main) lens |
- 12 MP
- Aperture: f/1.8 - Focal length: 26 mm - Pixel size: 1.4 micron - Sensor: 1/2.55", Apple iSight X (BSI CMOS) - Phase autofocus - Optical stabilization |
| Camera features |
- Bokeh mode
- RAW support |
| Megapixels | 7 megapixels |
| Image resolution | 3088 x 2316 |
| Aperture | f/2.2 |
| Focal length | 32 mm |
| Sensor type | CMOS |
| Video resolution | 1080p (Full HD) at 60 FPS |
DxOMark camera tests
Connectivity
| Wi-Fi standard | Wi-Fi 5 (802.11 a/b/g/n/ac) |
| Wi-Fi features |
- Dual Band
- Wi-Fi MiMO - Wi-Fi Hotspot |
| Bluetooth version | 5 |
| Bluetooth features | SPP, PBAP/PAB, PAN, OPP, MAP, LE, HSP, HID, HFP, HDP, GAP, GAVDP, DIP, AVRCP, A2DP |
| USB type | No |
| USB version | 2 |
| USB features |
- Charging
- OTG |
| GPS | GPS, GLONASS, Beidou, Galileo |
| NFC * | Yes |
| Infrared port | No |
| Number of SIM * | 1 |
| Type of SIM card | Nano |
| eSIM support * | Yes |
| Hybrid slot | No |
| LTE Cat * | 12 |
| 2G network | GSM 850, GSM 900, GSM 1800, GSM 1900 |
| 3G network | HSDPA 850, HSDPA 900, HSDPA 1900, HSDPA 2100 |
| 4G network | LTE 700, LTE 2100, LTE 800, LTE 1800, LTE 2600, LTE 850, LTE 1700, LTE 900, LTE 1900 |
| 5G support | No |
Sound
| Speakers | Stereo |
| Headphone audio jack | No |
| FM radio | No |
| Dolby Atmos | Yes |
Speakers test
Other
| Category | Flagship |
| Announced | September 2018 |
| Release date | October 2018 |
| SAR (head) | 0.99 W/kg |
| SAR (body) | 0.99 W/kg |
| Sensors |
- Barometer
- Proximity sensor - Gyroscope - Accelerometer - Ambient light sensor - Compass - Face recognition sensor |
*
Disclaimer!
Some specifications of the iPhone XR may differ by country or region
