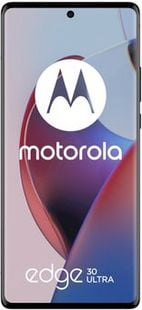

Motorola Edge 30 Ultra
- Screen: 6.67" OLED - 1080 x 2400
- SoC: Qualcomm Snapdragon 8 Plus Gen 1
- Camera: 3 (200 MP + 12 MP + 50 MP)
- Battery: 4610 mAh
- OS: Android 12
- Weight: 198.5 grams (7 oz)
Review
Full specifications
Detailed specifications, tests, and benchmarks of the Motorola Edge 30 UltraDisplay
| Type | OLED |
| Size | 6.67 inches |
| Resolution | 1080 x 2400 pixels |
| Aspect ratio | 20:9 |
| PPI | 394 ppi |
| Refresh rate | 144 Hz |
| Adaptive refresh rate | No |
| Max rated brightness | 600 nits |
| Max rated brightness in HDR | 1250 nits |
| HDR support | Yes, HDR10+ |
| Screen protection | Corning Gorilla Glass 5 |
| Screen-to-body ratio | 90.3% |
| Display features |
- DCI-P3
- Always-On Display - DC Dimming |
| RGB color space | 96.1% |
| PWM | 720 Hz |
| Response time | 1 ms |
| Contrast | ∞ Infinity |
Design and build
| Height | 161.76 mm (6.37 inches) |
| Width | 73.5 mm (2.89 inches) |
| Thickness | 8.39 mm (0.33 inches) |
| Weight | 198.5 g (7 oz) |
| Waterproof | IP52 |
| Advanced cooling | Vapor chamber |
| Rear material | Glass |
| Frame material | Metal |
| Colors | White, Black |
| Fingerprint scanner | Yes, in-display |
Performance
| Chipset | Qualcomm Snapdragon 8 Plus Gen 1 |
| Max clock | 3190 MHz |
| CPU cores | 8 (1 + 3 + 4) |
| Architecture |
- 4 cores at 2 GHz: Cortex-A510
- 3 cores at 2.75 GHz: Cortex-A710 - 1 core at 3.2 GHz: Cortex-X2 |
| L3 cache | 6 MB |
| Lithography process | 4 nanometers |
| Graphics | Adreno 730 |
| GPU shading units | 1536 |
| GPU clock | 900 MHz |
| FLOPS | ~2764.8 GFLOPS |
Benchmarks
| CPU | 371831 |
| GPU | 484698 |
| Memory | 199281 |
| UX | 232094 |
| Total score | 1278296 |
| Max surface temperature | 36.2 °C |
| Stability | 75% |
| Graphics test | 34 FPS |
| Graphics score | 5727 |
| Web score | 13720 |
| Video editing | 8148 |
| Photo editing | 30885 |
| Data manipulation | 12766 |
| Writing score | 18485 |
Memory
| RAM size | 8, 12 GB |
| Memory type | LPDDR5 |
| Channels | 4 |
| Storage size | 128, 256, 512 GB |
| Storage type | UFS 3.1 |
| Memory card | No |
Software
| Operating system | Android 12 |
| OS size | 19 GB |
Battery
| Capacity | 4610 mAh |
| Max charge power | 125 W |
| Battery type | Li-Po |
| Replaceable | No |
| Wireless charging | Yes (50 W) |
| Reverse charging | Yes, (wireless) |
| Fast charging | Yes (95% in 30 min) |
| Full charging time | 0:33 hr |
| Web browsing | 11:04 hr |
| Watching video | 15:48 hr |
| Gaming | 05:25 hr |
| Standby | 105 hr |
Camera
| Matrix | 200 megapixels |
| Image resolution | 16384 x 12288 |
| Zoom | Optical, 2x |
| Flash | Dual LED |
| Stabilization | Optical |
| 8K video recording | Up to 30FPS |
| 4K video recording | Up to 60FPS |
| 1080p video recording | Up to 60FPS |
| Slow motion | 960 FPS (1080p) |
| Angle of widest lens | 114° |
| Lenses | 3 (200 MP + 12 MP + 50 MP) |
| Wide (main) lens |
- 200 MP
- Aperture: f/1.9 - Pixel size: 0.64 micron - Sensor: 1/1.22", Samsung ISOCELL HP1 (ISOCELL Plus CMOS) - Phase autofocus - Optical stabilization |
| Telephoto lens |
- 12 MP
- Aperture: f/1.6 - Pixel size: 1.22 micron - Sensor: 1/2.93", Sony IMX663 (Exmor-RS CMOS) - Phase autofocus |
| Ultra-wide lens |
- 50 MP
- Aperture: f/2.2 - Pixel size: 0.64 micron - Sensor: 1/2.76", Samsung S5KJN1 (ISOCELL Plus CMOS) |
| Camera features |
- Bokeh mode
- Pro mode - RAW support |
| Megapixels | 60 megapixels |
| Image resolution | 4576 x 3296 |
| Aperture | f/2.2 |
| Pixel size | 0.61 microns |
| Sensor type | PureCel |
| Sensor size | 1/2.8" |
| Video resolution | 2160p (4K) at 30 FPS |
Connectivity
| Wi-Fi standard | Wi-Fi 6E (802.11 a/b/g/n/ac/ax) |
| Wi-Fi features |
- Dual Band
- Wi-Fi MiMO - Wi-Fi Direct - Wi-Fi Hotspot - Wi-Fi Display |
| Bluetooth version | 5.2 |
| Bluetooth features | LE |
| USB type | USB Type-C |
| USB version | 3.1 |
| USB features |
- Charging
- USB-Storage mode - OTG |
| GPS | GPS, GLONASS, Beidou, Galileo, QZSS |
| NFC * | Yes |
| Infrared port | No |
| Number of SIM * | 2 |
| Type of SIM card | Nano |
| Multi SIM mode | Standby |
| eSIM support * | No |
| Hybrid slot | No |
| LTE Cat * | 20 |
| 2G network | GSM B2/3/5/8 |
| 3G network | WCDMA B1/2/4/5/8 |
| 4G network | LTE B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/32/34/38/39/40/41/42/43/48/66 |
| 5G support | Yes |
Sound
| Speakers | Stereo |
| Headphone audio jack | No |
| FM radio | No |
| Dolby Atmos | Yes |
Speakers test
Other
| Category | Flagship |
| Announced | September 2022 |
| Release date | September 2022 |
| Sensors |
- Proximity sensor
- Gyroscope - Accelerometer - Ambient light sensor - Compass - Fingerprint |
| Bundled charger | Yes, 125 W |
*
Disclaimer!
Some specifications of the Edge 30 Ultra may differ by country or region
