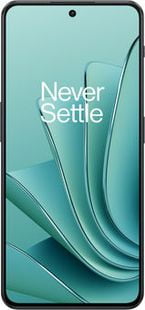

OnePlus Ace 2V
- Screen: 6.74" AMOLED - 1240 x 2772
- SoC: MediaTek Dimensity 9000
- Camera: 3 (64 MP + 8 MP + 2 MP)
- Battery: 5000 mAh
- OS: Android 13
- Weight: 191.5 grams (6.75 oz)
Review
Scores marked with a red asterisk (
*
) are approximate, as we currently do not have sufficient test results to make a precise estimation.
Full specifications
Detailed specifications, tests, and benchmarks of the OnePlus Ace 2VDisplay
| Type | AMOLED |
| Size | 6.74 inches |
| Resolution | 1240 x 2772 pixels |
| Aspect ratio | 20.1:9 |
| PPI | 451 ppi |
| Refresh rate | 120 Hz |
| Adaptive refresh rate | Yes |
| Max rated brightness | 600 nits |
| Max rated brightness in HDR | 1450 nits |
| HDR support | Yes, HDR10+ |
| Screen protection | Tempered glass |
| Screen-to-body ratio | 89.5% |
| Display features |
- DCI-P3
- Always-On Display - DC Dimming |
Design and build
| Height | 162.6 mm (6.4 inches) |
| Width | 75.1 mm (2.96 inches) |
| Thickness | 8.5 mm (0.33 inches) |
| Weight | 191.5 g (6.75 oz) |
| Waterproof | IP54 |
| Advanced cooling | Vapor chamber |
| Rear material | Glass |
| Frame material | Plastic |
| Colors | Black, Blue, Green |
| Fingerprint scanner | Yes, in-display |
Performance
| Chipset | MediaTek Dimensity 9000 |
| Max clock | 3050 MHz |
| CPU cores | 8 (1 + 3 + 4) |
| Architecture |
- 4 cores at 1.8 GHz: Cortex-A510
- 3 cores at 2.85 GHz: Cortex-A710 - 1 core at 3.05 GHz: Cortex-X2 |
| L3 cache | 8 MB |
| Lithography process | 4 nanometers |
| Graphics | Mali-G710 MP10 |
| GPU shading units | 960 |
| GPU clock | 848 MHz |
| FLOPS | ~1632 GFLOPS |
Benchmarks
| CPU | 347567 |
| GPU | 300204 |
| Memory | 202823 |
| UX | 230541 |
| Total score | 1079003 |
| Stability | 63% |
| Graphics test | 47 FPS |
| Graphics score | 7913 |
Memory
| RAM size | 12, 16 GB |
| Memory type | LPDDR5X |
| Channels | 4 |
| Storage size | 256, 512 GB |
| Storage type | UFS 3.1 |
| Memory card | No |
Software
| Operating system | Android 13 |
| ROM | ColorOS 13 |
Battery
| Capacity | 5000 mAh |
| Max charge power | 80 W |
| Battery type | Li-Po |
| Replaceable | No |
| Wireless charging | No |
| Reverse charging | No |
| Fast charging | Yes (50% in 16 min) |
| Full charging time | 0:32 hr |
Camera
| Matrix | 64 megapixels |
| Image resolution | 9000 x 7000 |
| Zoom | Digital |
| Flash | LED |
| Stabilization | Optical |
| 8K video recording | No |
| 4K video recording | Up to 60FPS |
| 1080p video recording | Up to 60FPS |
| Slow motion | 240 FPS (720p) |
| Angle of widest lens | 112° |
| Lenses | 3 (64 MP + 8 MP + 2 MP) |
| Wide (main) lens |
- 64 MP
- Aperture: f/1.7 - Focal length: 25 mm - Pixel size: 0.7 micron - Sensor: 1/2", Omnivision OV64B (CMOS) - Phase autofocus - Optical stabilization |
| Ultra-wide lens |
- 8 MP
- Aperture: f/2.2 - Focal length: 16 mm - Pixel size: 1.14 micron - Sensor: 1/4.0", Sony IMX355 (CMOS) |
| Macro lens |
- 2 MP
- Aperture: f/2.4 - Pixel size: 1.75 micron - Sensor: 1/5", GalaxyCore GC02M1 (CMOS) |
| Camera features |
- Bokeh mode
- Pro mode |
| Megapixels | 16 megapixels |
| Image resolution | 4608 x 3456 |
| Aperture | f/2.4 |
| Focal length | 26 mm |
| Pixel size | 1 microns |
| Sensor type | ISOCELL CMOS |
| Sensor size | 1/3.09" |
| Video resolution | 1080p (Full HD) at 30 FPS |
Connectivity
| Wi-Fi standard | Wi-Fi 6 (802.11 a/b/g/n/ac/) |
| Wi-Fi features |
- Dual Band
- Wi-Fi MiMO - Wi-Fi Direct - Wi-Fi Hotspot - Wi-Fi Display |
| Bluetooth version | 5.3 |
| Bluetooth features | LE |
| USB type | USB Type-C |
| USB version | 2 |
| USB features |
- Charging
- USB-Storage mode - OTG |
| GPS | GPS, GLONASS, Beidou, Galileo, QZSS |
| NFC * | Yes |
| Infrared port | Yes |
| Number of SIM * | 2 |
| Type of SIM card | Nano |
| Multi SIM mode | Standby |
| eSIM support * | No |
| Hybrid slot | No |
| LTE Cat * | 19 |
| 2G network | GSM 850/900/1800/1900 MHz |
| 3G network | WCDMA 1/4/5/8 |
| 4G network | LTE bands 1/3/4/5/8/28A/34/38/39/40/41 |
| 5G support | Yes |
Sound
| Speakers | Stereo |
| Headphone audio jack | No |
| FM radio | No |
Other
| Category | Mid-range |
| Announced | March 2023 |
| Release date | March 2023 |
| Sensors |
- Proximity sensor
- Gyroscope - Accelerometer - Ambient light sensor - Compass - Fingerprint |
| Bundled charger | Yes, 80 W |
*
Disclaimer!
Some specifications of the Ace 2V may differ by country or region
