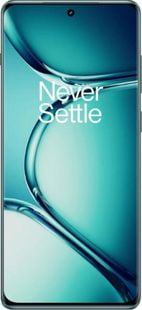

OnePlus Ace 2 Pro
- Screen: 6.74" AMOLED - 1240 x 2772
- SoC: Qualcomm Snapdragon 8 Gen 2
- Camera: 3 (50 MP + 8 MP + 2 MP)
- Battery: 5000 mAh
- OS: Android 13
- Weight: 210 grams (7.41 oz)
Review
Scores marked with a red asterisk (
*
) are approximate, as we currently do not have sufficient test results to make a precise estimation.
We may receive a commission from Amazon for purchases made using the links below, but this has no bearing on our assessment methodology.
Full specifications
Detailed specifications, tests, and benchmarks of the OnePlus Ace 2 ProDisplay
| Type | AMOLED |
| Size | 6.74 inches |
| Resolution | 1240 x 2772 pixels |
| Aspect ratio | 20:9 |
| PPI | 451 ppi |
| Refresh rate | 120 Hz |
| Adaptive refresh rate | Yes |
| Max rated brightness | 550 nits |
| Max rated brightness in HDR | 1600 nits |
| HDR support | Yes, HDR10+ |
| Screen protection | Tempered glass |
| Screen-to-body ratio | 90.3% |
| Display features |
- DCI-P3
- Always-On Display - DC Dimming |
Design and build
| Height | 163.1 mm (6.42 inches) |
| Width | 74.2 mm (2.92 inches) |
| Thickness | 8.98 mm (0.35 inches) |
| Weight | 210 g (7.41 oz) |
| Advanced cooling | Vapor chamber |
| Rear material | Glass |
| Frame material | Plastic |
| Colors | Black, Green |
| Fingerprint scanner | Yes, in-display |
Performance
| Chipset | Qualcomm Snapdragon 8 Gen 2 |
| Max clock | 3200 MHz |
| CPU cores | 8 (1 + 2 + 2 + 3) |
| Architecture |
- 3 cores at 2 GHz: Cortex-A510
- 2 cores at 2.8 GHz: Cortex-A710 - 2 cores at 2.8 GHz: Cortex-A715 - 1 core at 3.2 GHz: Cortex-X3 |
| L3 cache | 8 MB |
| Lithography process | 4 nanometers |
| Graphics | Adreno 740 |
| GPU shading units | 2560 |
| GPU clock | 680 MHz |
| FLOPS | ~3481.6 GFLOPS |
Benchmarks
| CPU | 399839 |
| GPU | 609320 |
| Memory | 326086 |
| UX | 297462 |
| Total score | 1718887 |
Memory
| RAM size | 12, 16, 24 GB |
| Memory type | LPDDR5X |
| Channels | 4 |
| Storage size | 256, 512, 1024 GB |
| Storage type | UFS 4.0 |
| Memory card | No |
Software
| Operating system | Android 13 |
| ROM | ColorOS 13.1 |
Battery
| Capacity | 5000 mAh |
| Max charge power | 150 W |
| Battery type | Li-Po |
| Replaceable | No |
| Wireless charging | No |
| Reverse charging | No |
| Fast charging | Yes (50% in 6 min) |
| Full charging time | 0:19 hr |
Camera
| Matrix | 50 megapixels |
| Image resolution | 8192 x 6144 |
| Zoom | Digital |
| Flash | Dual LED |
| Stabilization | Optical |
| 8K video recording | No |
| 4K video recording | Up to 60FPS |
| 1080p video recording | Up to 60FPS |
| Slow motion | 480 FPS (720p) |
| Angle of widest lens | 112° |
| Lenses | 3 (50 MP + 8 MP + 2 MP) |
| Wide (main) lens |
- 50 MP
- Aperture: f/1.8 - Focal length: 24 mm - Pixel size: 1 micron - Sensor: 1/1.56", Sony IMX890 (Exmor-RS CMOS) - Phase autofocus - Optical stabilization |
| Ultra-wide lens |
- 8 MP
- Aperture: f/2.2 - Focal length: 16 mm - Pixel size: 1.12 micron - Sensor: 1/4.0", Sony IMX355 (Exmor-RS CMOS) |
| Macro lens |
- 2 MP
- Aperture: f/2.4 - Pixel size: 1.75 micron - Sensor: 1/5", Omnivision OV02B10 (CMOS) |
| Camera features |
- Bokeh mode
- Pro mode |
| Megapixels | 16 megapixels |
| Image resolution | 4608 x 3456 |
| Aperture | f/2.4 |
| Focal length | 26 mm |
| Pixel size | 1 microns |
| Sensor type | CMOS |
| Sensor size | 1/3.09" |
| Video resolution | 1080p (Full HD) at 30 FPS |
Connectivity
| Wi-Fi standard | Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be) |
| Wi-Fi features |
- Dual Band
- Wi-Fi Direct - Wi-Fi Hotspot - Wi-Fi Display |
| Bluetooth version | 5.3 |
| Bluetooth features | LE |
| USB type | USB Type-C |
| USB version | 2 |
| USB features |
- Charging
- USB-Storage mode - OTG |
| GPS | GPS, GLONASS, Beidou, Galileo, QZSS |
| NFC * | Yes |
| Infrared port | Yes |
| Number of SIM * | 2 |
| Type of SIM card | Nano |
| Multi SIM mode | Standby |
| eSIM support * | No |
| Hybrid slot | No |
| LTE Cat * | 20 |
| 2G network | GSM 850/900/1800/1900MHz |
| 3G network | WCDMA 1/4/5/8 |
| 4G network | LTE 1/3/4/5/7/8/18/19/26/28A/34/38/39/40/41 |
| 5G support | Yes |
Sound
| Speakers | Stereo |
| Headphone audio jack | No |
| FM radio | No |
Other
| Category | Flagship |
| Announced | August 2023 |
| Release date | August 2023 |
| Sensors |
- Proximity sensor
- Gyroscope - Accelerometer - Ambient light sensor - Compass - Fingerprint |
| Bundled charger | Yes, 150 W |
*
Disclaimer!
Some specifications of the Ace 2 Pro may differ by country or region
