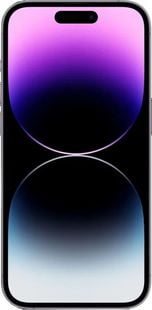

Apple iPhone 14 Pro Max
- Screen: 6.7" OLED - 1290 x 2796
- SoC: Apple A16 Bionic
- Camera: 4 (48 MP + 12 MP + 12 MP)
- Battery: 4323 mAh
- OS: iOS 17
- Weight: 240 grams (8.47 oz)
Review
We may receive a commission from Amazon for purchases made using the links below, but this has no bearing on our assessment methodology.
Full specifications
Detailed specifications, tests, and benchmarks of the Apple iPhone 14 Pro MaxDisplay
| Type | OLED |
| Size | 6.7 inches |
| Resolution | 1290 x 2796 pixels |
| Aspect ratio | 19.5:9 |
| PPI | 460 ppi |
| Refresh rate | 120 Hz |
| Adaptive refresh rate | Yes |
| Max rated brightness | 1000 nits |
| Max rated brightness in HDR | 1600 nits |
| HDR support | Yes, Dolby Vision |
| Screen protection | Ceramic Shield |
| Screen-to-body ratio | 88.3% |
| Display features |
- DCI-P3
- Always-On Display |
| RGB color space | 99.9% |
| PWM | 240 Hz |
| Response time | 1 ms |
| Contrast | ∞ Infinity |
Design and build
| Height | 160.7 mm (6.33 inches) |
| Width | 77.6 mm (3.06 inches) |
| Thickness | 7.85 mm (0.31 inches) |
| Weight | 240 g (8.47 oz) |
| Waterproof | IP68 |
| Rear material | Glass |
| Frame material | Metal |
| Colors | Black, Silver, Gold, Purple |
| Fingerprint scanner | No |
Performance
| Chipset | Apple A16 Bionic |
| Max clock | 3460 MHz |
| CPU cores | 6 (2 + 4) |
| Architecture |
- 4 cores at 2.02 GHz: Sawtooth
- 2 cores at 3.46 GHz: Everest |
| Lithography process | 4 nanometers |
| Graphics | Apple A16 GPU |
| GPU shading units | 640 |
| GPU clock | 1398 MHz |
| FLOPS | ~1789.4 GFLOPS |
Benchmarks
| CPU | 310783 |
| GPU | 514249 |
| Memory | 234912 |
| UX | 404558 |
| Total score | 1463140 |
| Max surface temperature | 46 °C |
| Stability | 82% |
| Graphics test | 58 FPS |
| Graphics score | 9848 |
Memory
| RAM size | 6 GB |
| Memory type | LPDDR5 |
| Channels | 4 |
| Storage size | 128, 256, 512, 1024 GB |
| Storage type | NVMe |
| Memory card | No |
Software
| Operating system | iOS 16 (Can be upgraded to iOS 17) |
Battery
| Capacity | 4323 mAh |
| Max charge power | 27 W |
| Battery type | Li-Ion |
| Replaceable | No |
| Wireless charging | Yes (7.5 W) |
| Reverse charging | No |
| Fast charging | Yes (48% in 30 min) |
| Full charging time | 1:52 hr |
| Web browsing | 15:02 hr |
| Watching video | 21:10 hr |
| Gaming | 07:04 hr |
| Standby | 156 hr |
Camera
| Matrix | 48 megapixels |
| Image resolution | 8000 x 6000 |
| Zoom | Optical, 3x |
| Flash | Dual LED |
| Stabilization | Optical |
| 8K video recording | No |
| 4K video recording | Up to 60FPS |
| 1080p video recording | Up to 60FPS |
| Slow motion | 240 FPS (1080p) |
| Angle of widest lens | 120° |
| Lenses | 4 (48 MP + 12 MP + 12 MP) |
| Wide (main) lens |
- 48 MP
- Aperture: f/1.8 - Focal length: 24 mm - Pixel size: 1.22 micron - Sensor: 1/1.28", Sony IMX803 (Exmor-RS CMOS) - Phase autofocus (Dual Pixel) - Optical stabilization |
| Telephoto lens |
- 12 MP
- Aperture: f/2.8 - Focal length: 77 mm - Sensor: 1/3.5", Sony IMX713 (Exmor-RS CMOS) - Phase autofocus - Optical stabilization |
| Ultra-wide lens |
- 12 MP
- Aperture: f/2.2 - Focal length: 13 mm - Pixel size: 1.4 micron - Sensor: 1/2.55", Sony IMX633 (Exmor-RS CMOS) - Phase autofocus |
| Depth lens | Yes |
| Camera features |
- Bokeh mode
- Pro mode - RAW support |
| Samples | Photo samples of Apple iPhone 14 Pro Max from DxOMark |
| Megapixels | 12 megapixels |
| Image resolution | 4032 x 3024 |
| Aperture | f/1.9 |
| Focal length | 23 mm |
| Pixel size | 1.12 microns |
| Sensor type | Exmor-RS CMOS |
| Sensor size | 1/3.6" |
| Video resolution | 2160p (4K) at 60 FPS |
DxOMark camera tests
Connectivity
| Wi-Fi standard | Wi-Fi 6 (802.11 a/b/g/n/ac/ax) |
| Wi-Fi features |
- Dual Band
- Wi-Fi MiMO - Wi-Fi Direct - Wi-Fi Hotspot - Wi-Fi Display |
| Bluetooth version | 5.3 |
| Bluetooth features | LE |
| USB version | 2 |
| USB features |
- Charging
- USB-Storage mode - OTG |
| GPS | GPS, GLONASS, Beidou, Galileo, QZSS |
| NFC * | Yes |
| Infrared port | No |
| Type of SIM card | eSIM |
| eSIM support * | Yes |
| Hybrid slot | No |
| LTE Cat * | 20 |
| 2G network | GSM/EDGE (850, 900, 1800, 1900 MHz) |
| 3G network | UMTS/HSPA+/DC-HSDPA (850, 900, 1700/2100, 1900, 2100 MHz) |
| 4G network | LTE 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 66, 71, 34, 38, 39, 40, 41, 42, 46, 48, 53 |
| 5G support | Yes |
Sound
| Speakers | Stereo |
| Headphone audio jack | No |
| FM radio | No |
| Dolby Atmos | Yes |
Speakers test
Other
| Category | Flagship |
| Announced | September 2022 |
| Release date | September 2022 |
| Sensors |
- Barometer
- Proximity sensor - Gyroscope - Accelerometer - Ambient light sensor - Compass - Face recognition sensor |
| Bundled charger | Not included |
*
Disclaimer!
Some specifications of the iPhone 14 Pro Max may differ by country or region
