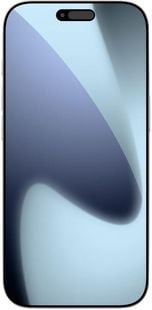

Apple iPhone 17 Pro Max
- Screen: 6.9" OLED - 1320 x 2868
- SoC: Apple A19 Pro
- Camera: 4 (48 MP + 48 MP + 48 MP)
- Battery: 4729 mAh
- OS: iOS 26
- Weight: 221 grams (7.8 oz)
Specifications of the iPhone 17 Pro Max was provided by insiders and may not be fully accurate. This page will be updated after the official release.
Full specifications
Detailed specifications, tests, and benchmarks of the Apple iPhone 17 Pro MaxDisplay
| Type | OLED |
| Size | 6.9 inches |
| Resolution | 1320 x 2868 pixels |
| Aspect ratio | 19.5:9 |
| PPI | 458 ppi |
| Refresh rate | 120 Hz |
| Adaptive refresh rate | Yes (1-120 Hz) |
| HDR support | Yes, Dolby Vision |
| Screen protection | Ceramic Shield |
| Screen-to-body ratio | 92.6% |
| Display features | - DCI-P3 - Always-On Display |
Design and build
| Height | 163 mm (6.42 inches) |
| Width | 77.4 mm (3.05 inches) |
| Thickness | 8.2 mm (0.32 inches) |
| Weight | 221 g (7.8 oz) |
| Waterproof | IP68 |
| Rear material | Glass |
| Frame material | Metal |
| Colors | White, Black, Silver |
| Fingerprint scanner | No |
Performance
| Chipset | Apple A19 Pro |
| Max clock | 4300 MHz |
Benchmarks
| Single-core score | 3780 |
| Multi-core score | 10772 |
| CPU | 510033 |
| GPU | 791934 |
| Memory | 367847 |
| UX | 442645 |
| Total score | 2112459 |
Memory
| RAM size | 12 GB |
| Memory type | LPDDR5X |
| Channels | 4 |
| Storage size | 256 GB |
| Storage type | NVMe |
| Memory card | No |
Software
| Operating system | iOS 26 |
Battery
| Capacity | 4729 mAh |
| Max charge power | 30 W |
| Battery type | Li-Ion |
| Replaceable | No |
| Wireless charging | Yes (15 W) |
| Reverse charging | Yes |
| Fast charging | Yes |
Main camera
| Matrix | 48 megapixels |
| Image resolution | 8064 x 6048 |
| Zoom | Optical, 5x |
| Flash | Dual LED |
| Stabilization | Optical |
| 8K video recording | No |
| 4K video recording | Up to 120FPS |
| 1080p video recording | Up to 120FPS |
| Slow motion | 240 FPS (1080p) |
| Angle of widest lens | 120° |
| Lenses | 1) Standard: 48 MP 2) Telephoto: 48 MP 3) Ultrawide: 48 MP 4) Depth |
| Camera features | - Bokeh mode - Pro mode - RAW support |
| Image resolution | 48 MP |
| Aperture | f/1.6 |
| Sensor size | 1/1.28" |
| Pixel size | 1.22 micron |
| Autofocus | Phase autofocus (Dual Pixel) |
| Stabilization | Optical |
| Image resolution | 48 MP |
| Aperture | f/2.8 |
| Focal length | 120 mm |
| Stabilization | Optical |
| Image resolution | 48 MP |
| Aperture | f/2.2 |
| Focal length | 13 mm |
| Pixel size | 0.7 micron |
| Stabilization | Digital |
Selfie camera
| Megapixels | 24 megapixels |
| Aperture | f/1.9 |
| Pixel size | 1.12 micron |
| Autofocus | Phase autofocus |
| Stabilization | Optical |
| Video resolution | 2160p (4K) at 60 FPS |
| Depth sensor (TOF 3D) | Yes |
Connectivity
| Wi-Fi standard | Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be) |
| Wi-Fi features | - Dual Band - Wi-Fi MiMO - Wi-Fi Direct - Wi-Fi Hotspot - Wi-Fi Display |
| Bluetooth version | 5.4 |
| Bluetooth features | LE |
| USB type | USB Type-C |
| USB version | 3.2 |
| USB features | - Charging - USB-Storage mode - OTG |
| DisplayPort | Yes |
| GPS | GPS, GLONASS, Beidou, Galileo, QZSS, NAVIC |
| NFC* | Yes |
| Infrared port | No |
| Type of SIM card | eSIM |
| eSIM support* | Yes |
| Hybrid slot | No |
| 5G support | Yes |
Sound
| Speakers | Stereo |
| Headphone audio jack | No |
| FM radio | No |
| Dolby Atmos | Yes |
Other
| Category | Flagship |
| Announced | September 2025 |
| Release date | September 2025 |
| Launch price (MSRP) | $1199 |
| Sensors | - Barometer - Proximity sensor - Gyroscope - Accelerometer - Ambient light sensor - Compass - Face recognition sensor |
| Bundled charger | Not included |
*Disclaimer! Some specifications of the iPhone 17 Pro Max may differ by country or region
