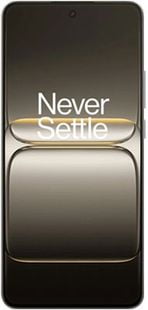

OnePlus Ace 5 Racing
- Screen: 6.77" AMOLED - 1080 x 2392
- SoC: MediaTek Dimensity 9400e
- Camera: 2 (50 MP + 2 MP)
- Battery: 7100 mAh
- OS: Android 15
- Weight: 200 grams (7.05 oz)
Review
Scores marked with a red asterisk (*) are approximate, as we currently do not have sufficient test results to make a precise estimation.
Full specifications
Detailed specifications, tests, and benchmarks of the OnePlus Ace 5 RacingDisplay
| Type | AMOLED |
| Size | 6.77 inches |
| Resolution | 1080 x 2392 pixels |
| PPI | 387 ppi |
| Refresh rate | 120 Hz |
| Adaptive refresh rate | Yes (60-120 Hz) |
| Max rated brightness | 1300 nits |
| HDR support | Yes, HDR10 |
| Screen protection | Crystal Shield Glass |
| Screen-to-body ratio | 89.7% |
| Display features | - DCI-P3 - Always-On Display - DC Dimming |
Design and build
| Height | 163.58 mm (6.44 inches) |
| Width | 76.02 mm (2.99 inches) |
| Thickness | 8.17 mm (0.32 inches) |
| Weight | 200 g (7.05 oz) |
| Waterproof | IP64 |
| Advanced cooling | Vapor chamber |
| Colors | White, Black, Green |
| Fingerprint scanner | Yes, in-display |
Performance
| Chipset | MediaTek Dimensity 9400e |
| Max clock | 3400 MHz |
| CPU cores | 8 (1 + 3 + 4) |
| Architecture | - 4 cores at 2 GHz: Cortex-A720 - 3 cores at 2.85 GHz: Cortex-X4 - 1 core at 3.4 GHz: Cortex-X4 |
| L3 cache | 8 MB |
| Manufacturing | TSMC |
| Lithography process | 4 nanometers |
| Neural processor (NPU) | MediaTek NPU 790 |
| Graphics | Mali-G720 Immortalis MP12 |
| GPU shading units | 1536 |
| GPU clock | 1300 MHz |
| FLOPS | ~3993.6 GFLOPS |
Benchmarks
| Single-core score | 2250 |
| Multi-core score | 7452 |
| CPU | 468076 |
| GPU | 881160 |
| Memory | 402890 |
| UX | 372630 |
| Total score | 2124756 |
Memory
| RAM size | 12 GB |
| Memory type | LPDDR5X |
| Channels | 4 |
| Storage size | 256 GB |
| Storage type | UFS 4.0 |
| Memory card | No |
Software
| Operating system | Android 15 |
| ROM | ColorOS 15 |
Battery
| Capacity | 7100 mAh |
| Max charge power | 80 W |
| Battery type | Silicon-Carbon (Si/C) |
| Replaceable | No |
| Wireless charging | No |
| Fast charging | Yes |
Main camera
| Matrix | 50 megapixels |
| Image resolution | 8192 x 6144 |
| Zoom | Digital |
| Flash | LED |
| Stabilization | Optical |
| 8K video recording | No |
| 4K video recording | Up to 60FPS |
| 1080p video recording | Up to 60FPS |
| Slow motion | 240 FPS (1080p) |
| Lenses | 1) Standard: 50 MP 2) Depth: 2 MP |
| Camera features | - Bokeh mode - Pro mode |
| Image resolution | 50 MP |
| Aperture | f/1.8 |
| Focal length | 26 mm |
| Sensor size | 1/1.95" |
| Autofocus | Phase autofocus |
| Stabilization | Optical |
Selfie camera
| Megapixels | 16 megapixels |
| Image resolution | 4608 x 3456 |
| Aperture | f/2.4 |
| Focal length | 23 mm |
| Sensor size | 1/3" |
| Autofocus | No |
| Stabilization | Digital |
| Video resolution | 1080p (Full HD) at 60 FPS |
| Depth sensor (TOF 3D) | No |
Connectivity
| Wi-Fi standard | Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be) |
| Wi-Fi features | - Dual Band - Wi-Fi MiMO - Wi-Fi Direct - Wi-Fi Hotspot - Wi-Fi Display |
| Bluetooth version | 5.4 |
| Bluetooth features | LE |
| USB type | USB Type-C |
| USB version | 2 |
| USB features | - Charging - USB-Storage mode - OTG |
| DisplayPort | No |
| GPS | GPS, GLONASS, Galileo, QZSS |
| NFC* | Yes |
| Infrared port | Yes |
| Number of SIM* | 2 |
| Type of SIM card | Nano |
| Multi SIM mode | Standby |
| eSIM support* | No |
| Hybrid slot | No |
| 2G network | GSM 850/900/1800MHz |
| 3G network | WCDMA 1/5/8 |
| 4G network | LTE 1/3/4/5/8/19/28A/34/38/39/40/41/42/48/66 |
| 5G support | Yes |
Sound
| Headphone audio jack | No |
| FM radio | No |
Other
| Category | Flagship |
| Announced | May 2025 |
| Release date | May 2025 |
| Sensors | - Proximity sensor - Gyroscope - Accelerometer - Ambient light sensor - Compass - Fingerprint |
| Bundled charger | Yes, 80 W |
*Disclaimer! Some specifications of the Ace 5 Racing may differ by country or region
